 康明斯系列柴油發電機組是采用中美合資B/N/K系列發動機為引擎,其可靠性、經濟性一直以來贏得部隊、工程、工礦企業的信賴?得魉构緞建于1919年2月,總部設在美國印第安納州哥倫布市,康明斯在全球190多個國家和地區,500多加分銷機構,服務網點遍布世界各地,為客戶提供了可以信賴的服務保障。作為中國發動機行業最大的外國投資商,康明斯在中國擁有東風康明斯發動機有限公司(生產B/C/L系列)和重慶康明斯發動機有限公司(生產M/N/K系列)等制造企業。

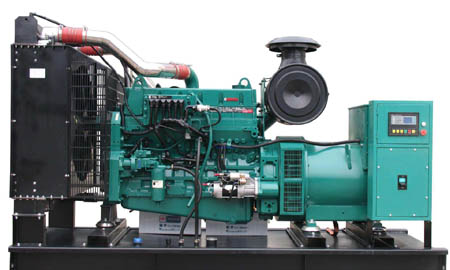

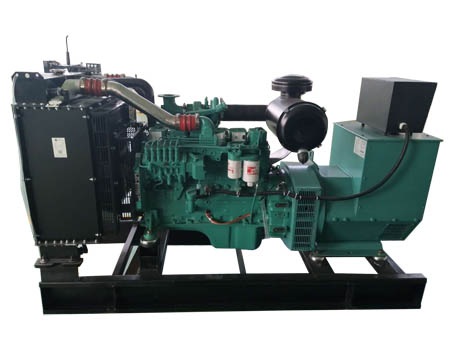

Cummins diesel generator set is a sino-us joint B/N/K series engine, whose reliability and economy have always won the trust of the army, engineering and mining enterprises. Cummins company was established in February 1919, is headquartered in Columbus, indiana (USA), cummins in more than 190 countries and regions, 500 more distributors, service outlets all over the world, providing customers with reliable service. As engine industry's biggest foreign investors in China, cummins in China with dongfeng cummins engine co., LTD (produce B/C/L series) and chongqing cummins engine co., LTD. (M/N/K series), and other manufacturing enterprises.


機組型號 輸出功率
KW    KVA
電流
A
柴油機型號 缸數 缸徑*行程
mm
潤滑油容量
L
油耗
g/kw.g
機組外形尺寸
L×W×H
機組重量
kg
FM20GF 20 25 36 4B3.9-G2 4 102*120 11 208 1560*710*1080 700
FM24GF 24 30 43.2 4B3.9-G2 4 102*120 11 208 1620*710*1100 710
FM30GF 30 37.5 54 4BT3.9-G2 4 102*120 11 208 1700*710*1110 800
FM40GF 40 50 72 4BTA3.9-G2 4 102*120 11 210 1800*800*1200 920
FM50GF 50 62.5 90 4BTA3.9-G2 4 102*120 11 210 1800*800*1200 950
FM64GF 64 80 115.2 4BTA3.9-G11 4 102*120 11 210 1850*800*1200 1000
FM80GF 80 100 144 6BT5.9-G2 6 102*120 16 210 2200*800*1200 1250
FM100GF 100 125 180 6BTA5.9-G2 6 102*120 20 207 2200*800*1200 1300
FM120GF 120 150 216 6BTAA5.9-G2 6 102*120 24 207 2250*800*1200 1350
FM132GF 132 165 237.5 6BTAA5.9-G12 6 102*120 24 207 2300*820*1330 1350
FM150GF 150 187.5 270 6CTA8.3-G2 6 114*135 24 207 2300*820*1300 1600
FM180GF 180 225 324 6CTAA8.3-G2 6 114*135 24 207 2500*1050*1480 1700
FM200GF 200 250 360 6LTAA8.9-G2 6 114*145 28 207 2500*1050*1500 2000
FM220GF 220 275 396 6LTAA8.9-G3 6 114*145 28 203 2500*1050*1500 2000
FM320GF 320 400 576 6ZTAA13-G3 6 114*145 28 202 3200*1360*1800 3000
FM400GF 400 500 720 6ZTAA13-G4 6 114*145 28 202 3200*1360*1800 3000
FM400GF 400 500 720 QSZ13-G2 6 130*163 28 201 3300*1360*1800 3100
FM450GF 450 562.5 810 QSZ13-G3 6 130*163 28 201 3300*1360*1800 3100

1.以上技術參數轉速為1500RPM,頻率50HZ,額定電壓400/230V,功率因數0.8,接線方式為三相四線。
2.發電機可以根據客戶需求,選用上海斯坦福、上海馬拉松、無錫斯坦福等知名品牌。
3.60HZ發電機組可以根據客戶的特殊需要定制。
4.本參數表僅供參考,如有更改恕不另行通知。

標準配置 Standard equipment:
發動機 diesel engine
發電機 alternator
散熱器 water cooled radiator
工業消音器 、波紋管 industrial silencer and flexible exhaust hose
啟動免維護蓄電池及蓄電池電池連接線 maintenance-free lead-acid starting batteries and battery connect wires
輸出斷路器 output circuit breaker
智能控制屏 digital control panel
鋼式底架 steel base frame

可選配置 Optional equipment
低噪音靜音機箱 Low noise silent case
四輪移動拖車電站 Four-wheel mobile trailer power station
自啟動、自轉換開關柜 Self - start, self - conversion switch cabinet
自動并機控制系統 automatic parallel operation control system
電熱式水套加熱器 electrothermal water jacket heater
